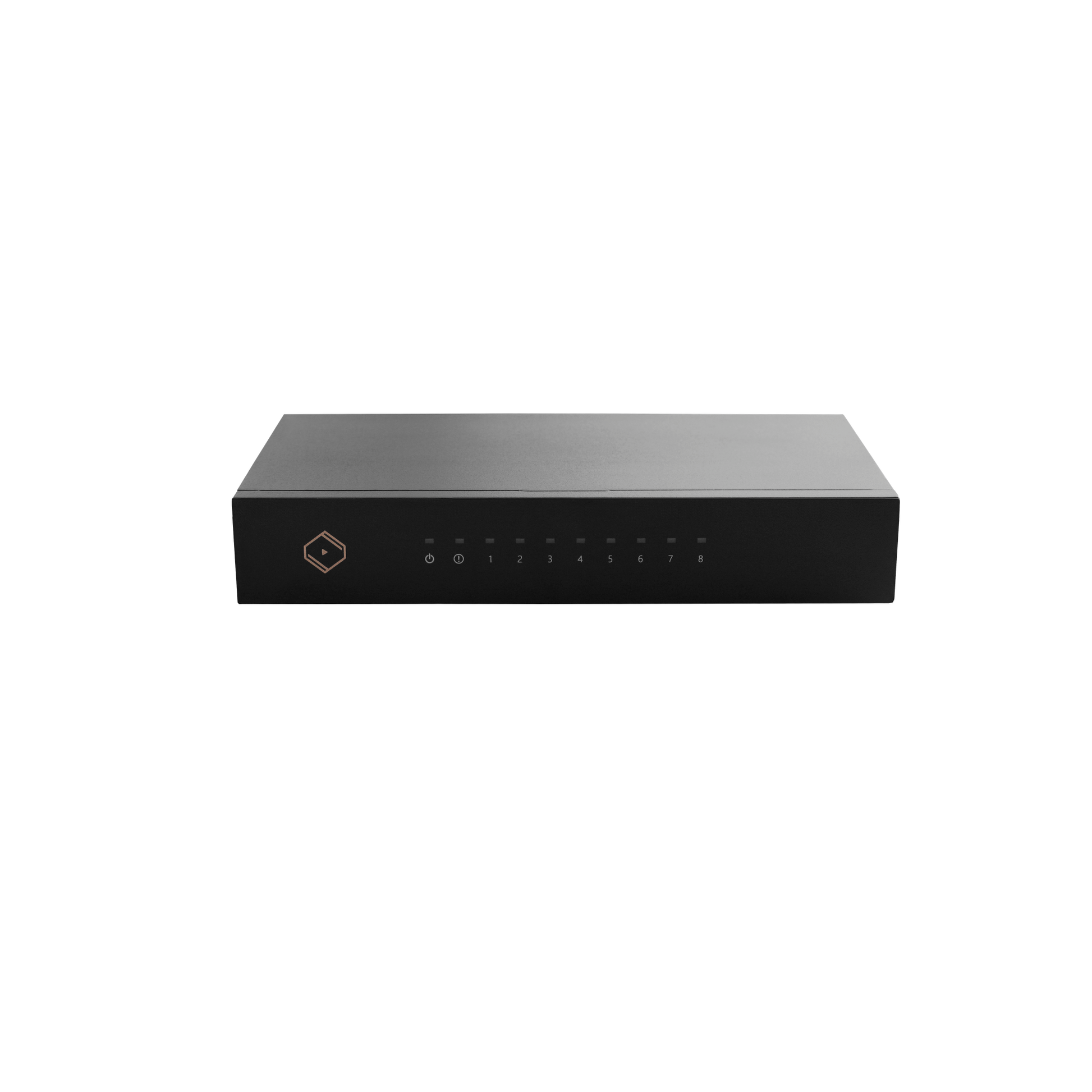

Bonn N8 - Audio Network Switch
The Bonn N8 purifies audio network signals to create low-noise and low-interference environments perfect for music streaming.
This creates a HiFi audio zone that effectively separates your audio devices from household traffic and reduces the impact from network broadcasting storms and latency caused by bandwidth-intensive activities from PCs and other devices.
High-Permeability EMI Absorber
A highly permeable EMI absorber (>120 @1MHz) is applied inside the system to reduce electrical interference.
Noise-filtering Power Adapter
Medical-grade power adapter to provide stable power and ensure precise operations.
Exclusive Clock Module, TCXO
Silent Angel’s 0.1ppm TCXO (Temperature Compensation Crystal Oscillator) is 50 times more precise than a general Crystal Clock, lowering latency issues and jitter effects.
Jitter Effect Improvement
When transmitting high-frequency network packets, distortion is a common effect. The Bonn N8 is effectively able to lower this to 369ps whereas other general switches present at 705ps.
Optimized For Music Applications
- Optimized for Roon infrastructure. e.g. Serve a network composed of Rhein Z1 as a Roon Core server, and Munich M1 as Roon Ready players.
- Optimized for high-resolution streaming services such as Tidal, Qobuz, Spotify and more.
- Optimized for playing music collections from NAS (Network Attached Storage), works well with multiple brands such as QNAP, Synology, WD NAS.
Connect to the Forester F1 linear power supply (supplying dual 5V 2A DC outputs) to further improve its power source.

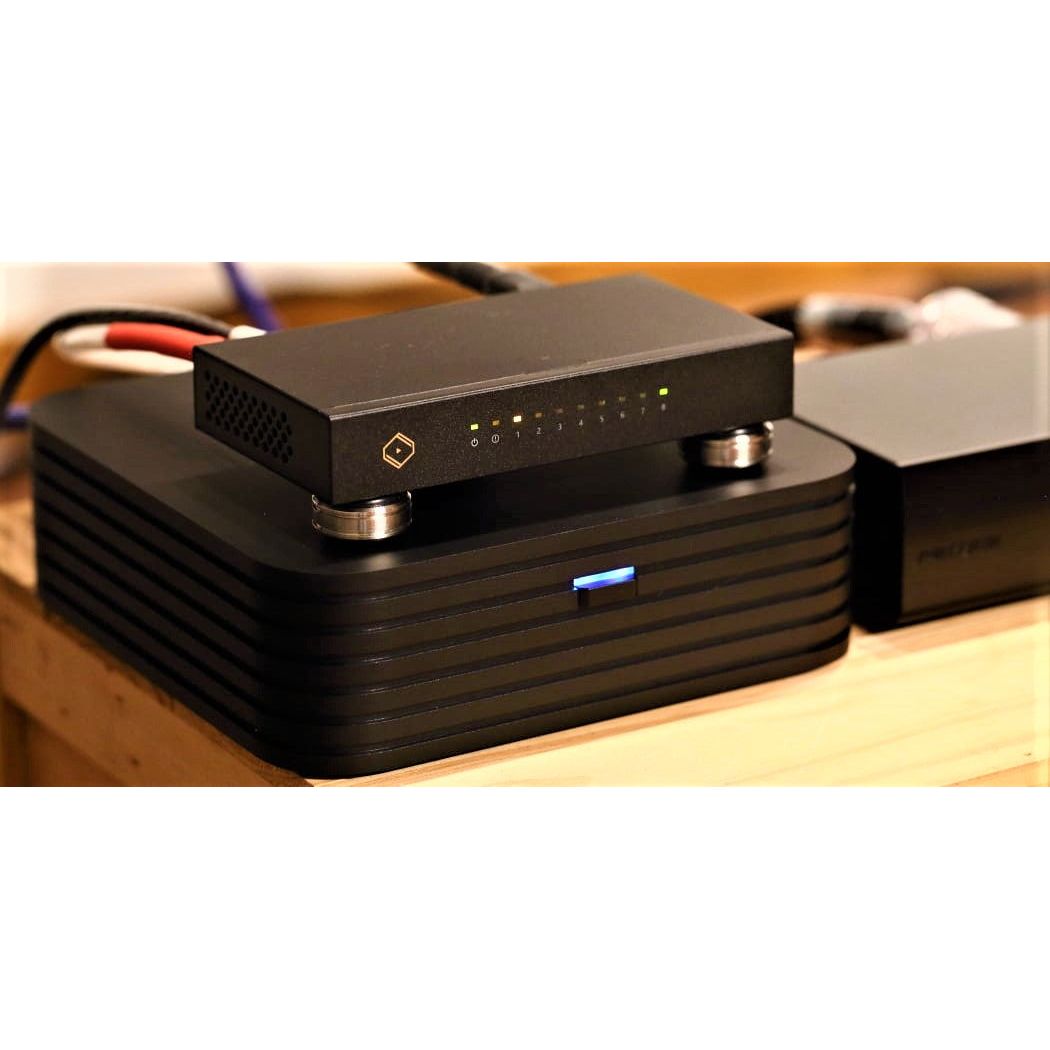

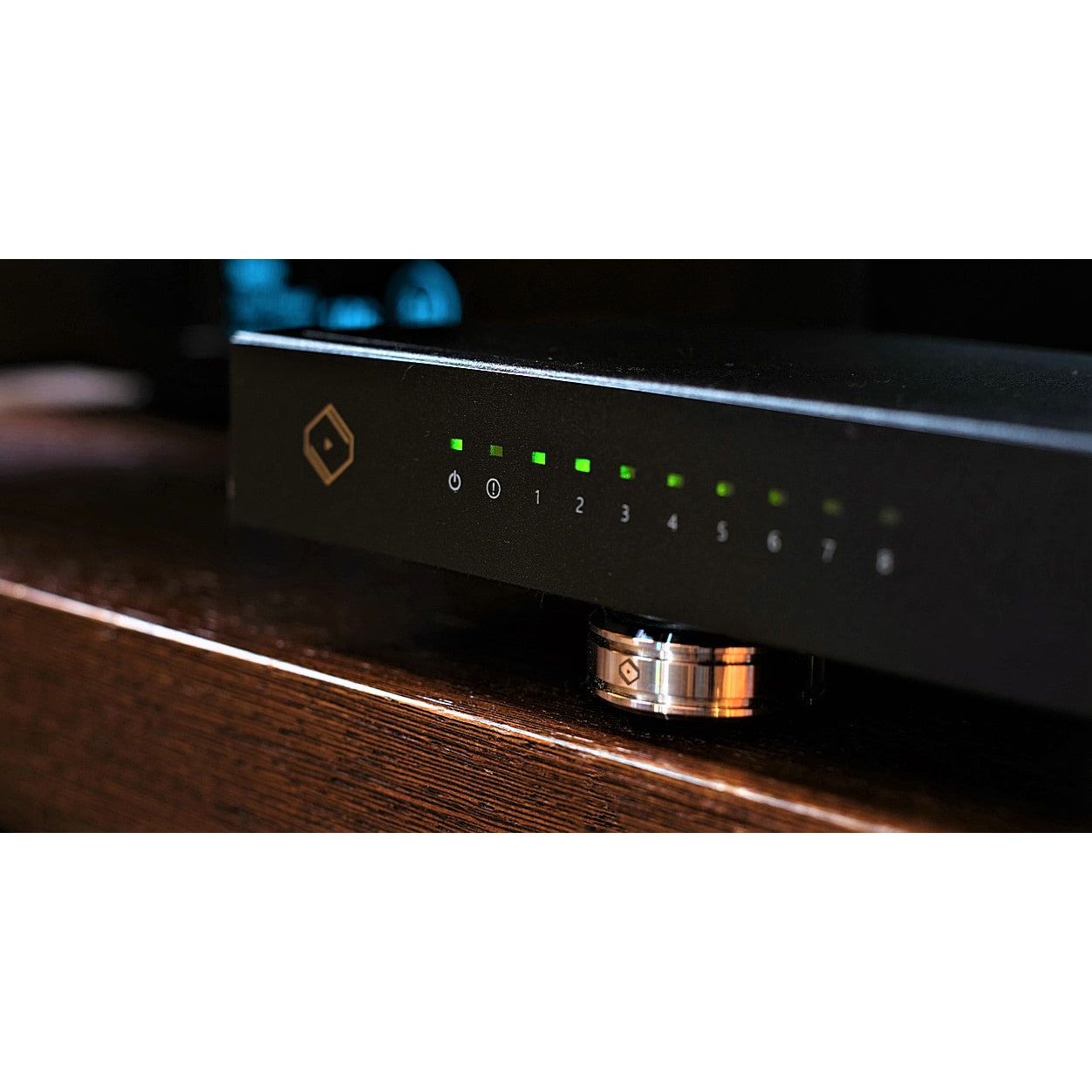

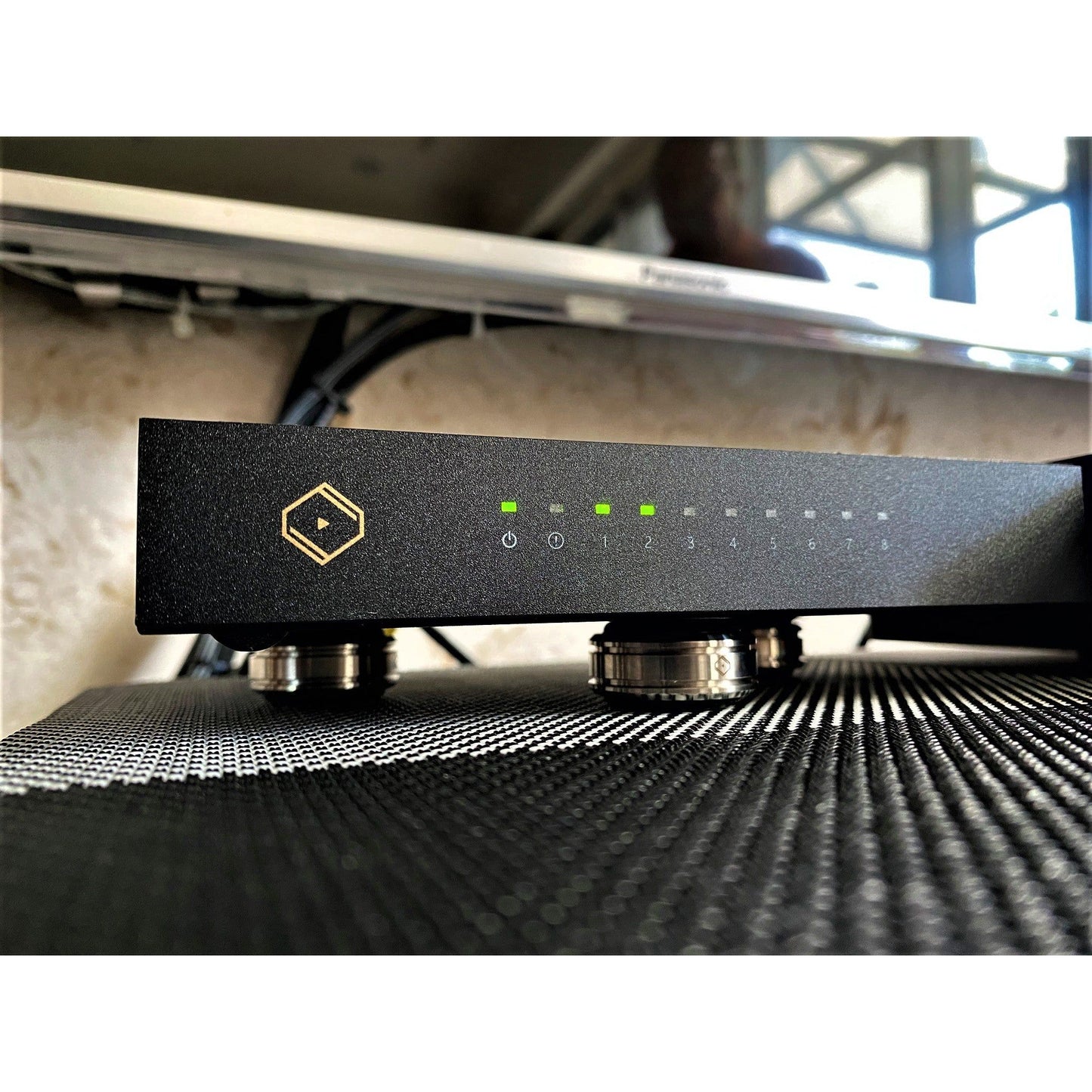

Minimize vibration and reduce noise by using S28 stainless steel stands.
Daisy chain another one or more Bonn N8 units to better isolate the audio network zone from household traffic.

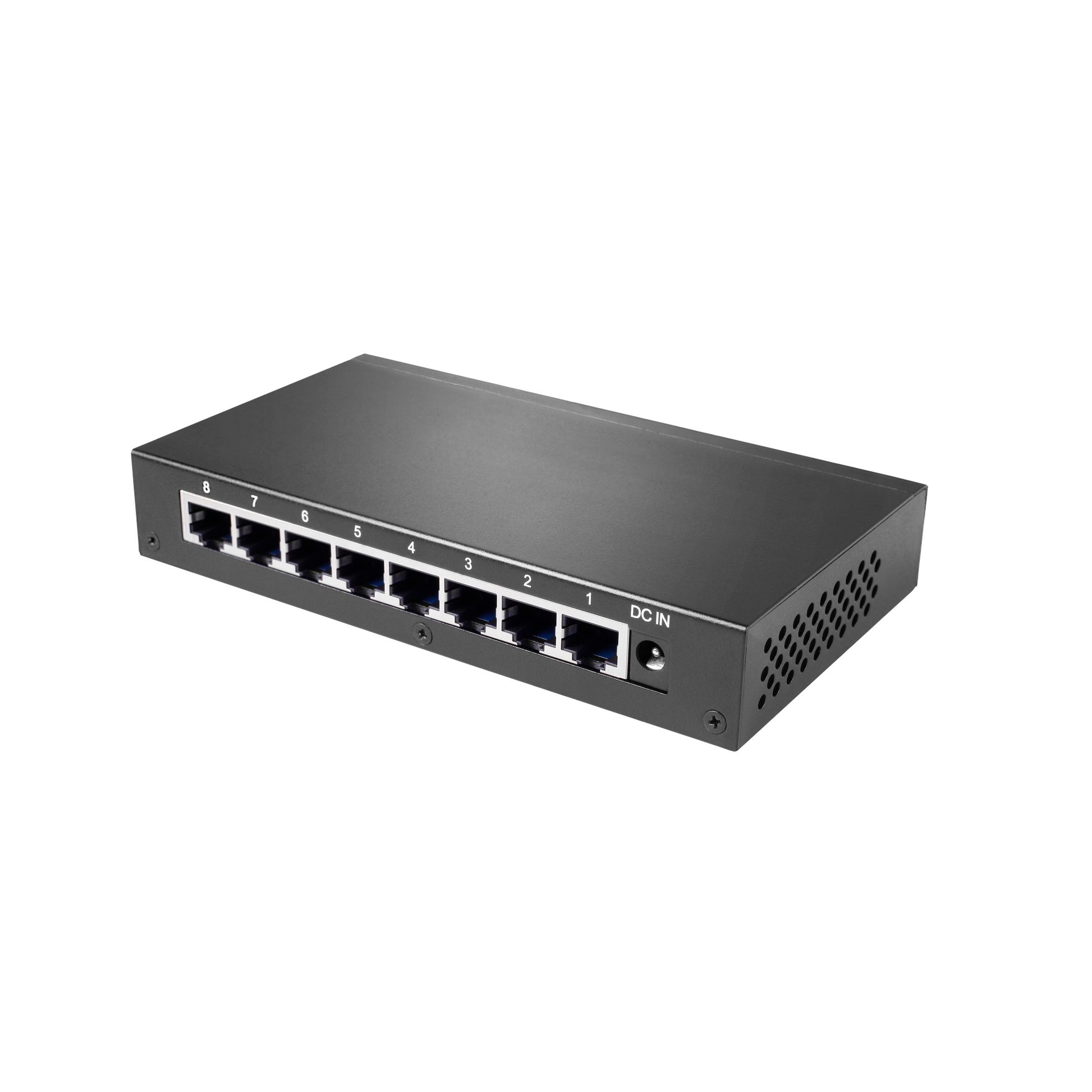

|Ethernet Ports||8 x Audio Grade 100 / 1000 Base-T|
|Main Clock Accuracy||0.1 ppm at 25 °C|
|EMI Absorber||Silent Angel Noise Absorber (SANA)|
|Noise Isolator||Main Power Circuit: 17.78 dB @ 100MHz x2
Clock Gen. Circuit: 20.79 dB @ 100MHz x2
|Power Adaptor||Medical Grade Power Adaptor*|
|Power Input||External Power 5VDC at 1A|
|Power Consumption||Max. 5W|
|Product Dimension||6.09(W) inch x 1.03(H) inch x 3.35(D) inch
154.5(W) mm x 26(H) mm x 85(D) mm
|Case Material||Metal in Black|
|Weight||2.21 lbs (1 KG)|
|Temperature||Operating: 32 ~ 86 °F (0 ~ 35 °C)
Storage: -4 ~ 158 °F (-20 ~ 70 °C)
|Humidity||Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
* The medical grade power adaptor meets 2xMOPP isolation regulation, which is highest level in medical grade, and has ultra low leakage current (<100μA).
