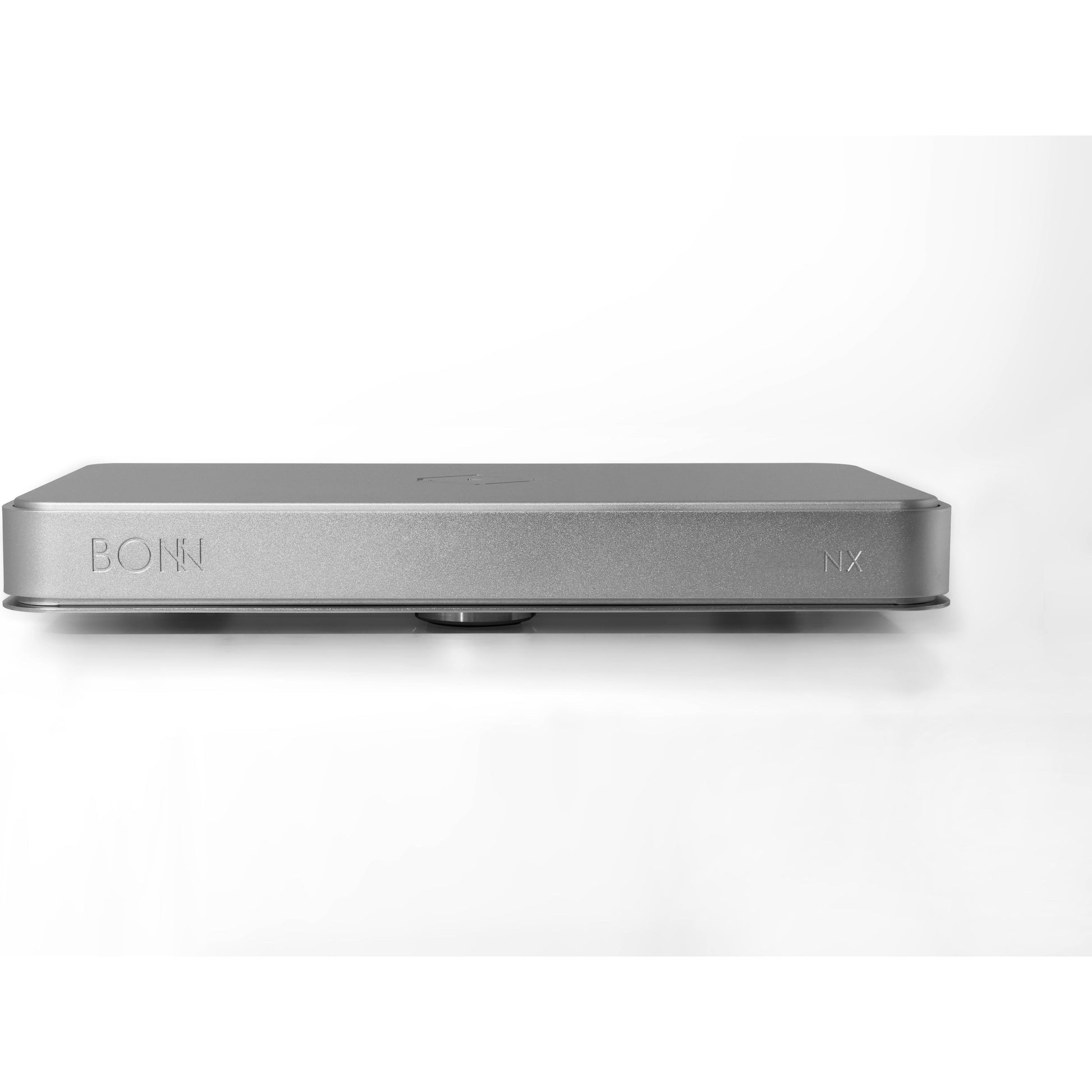

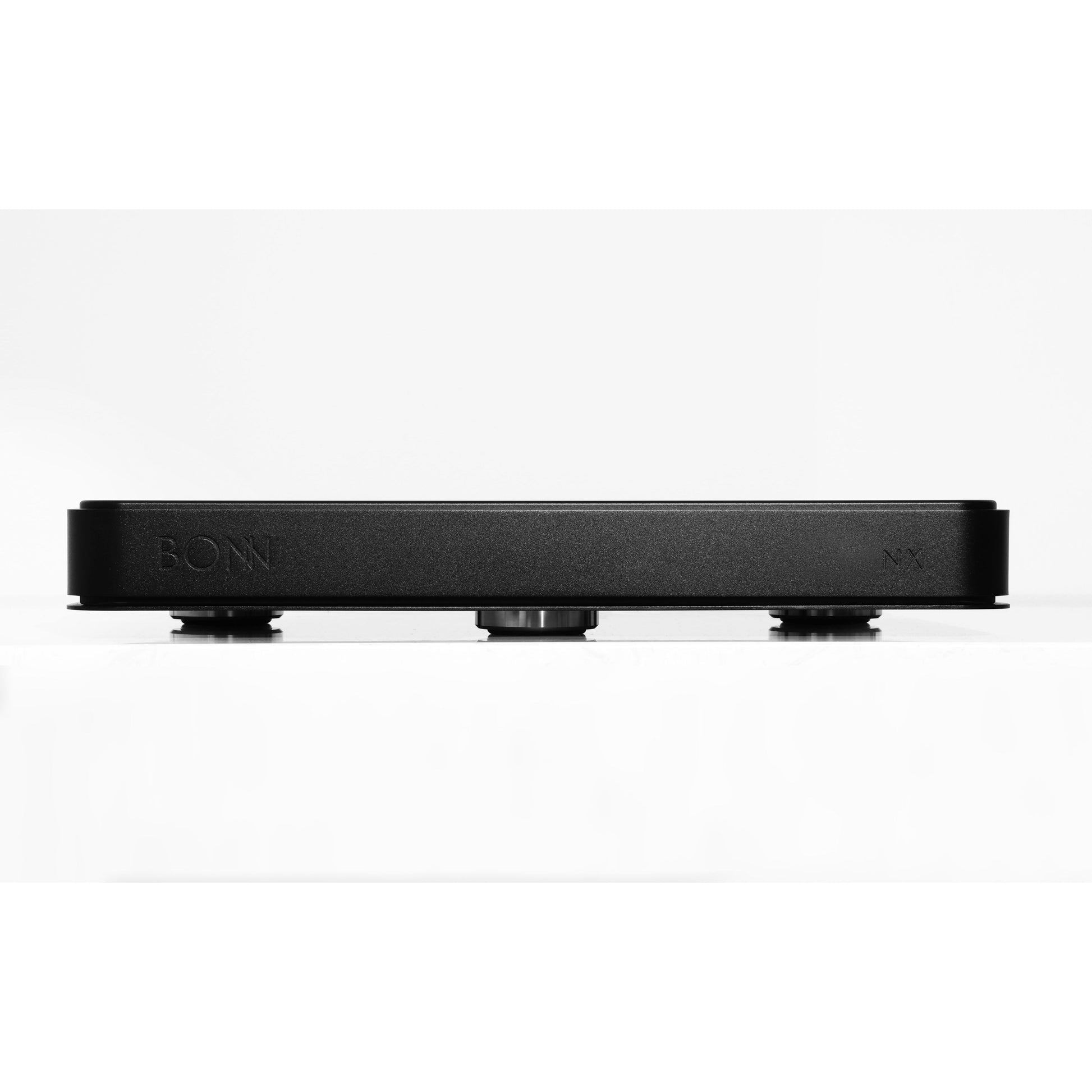

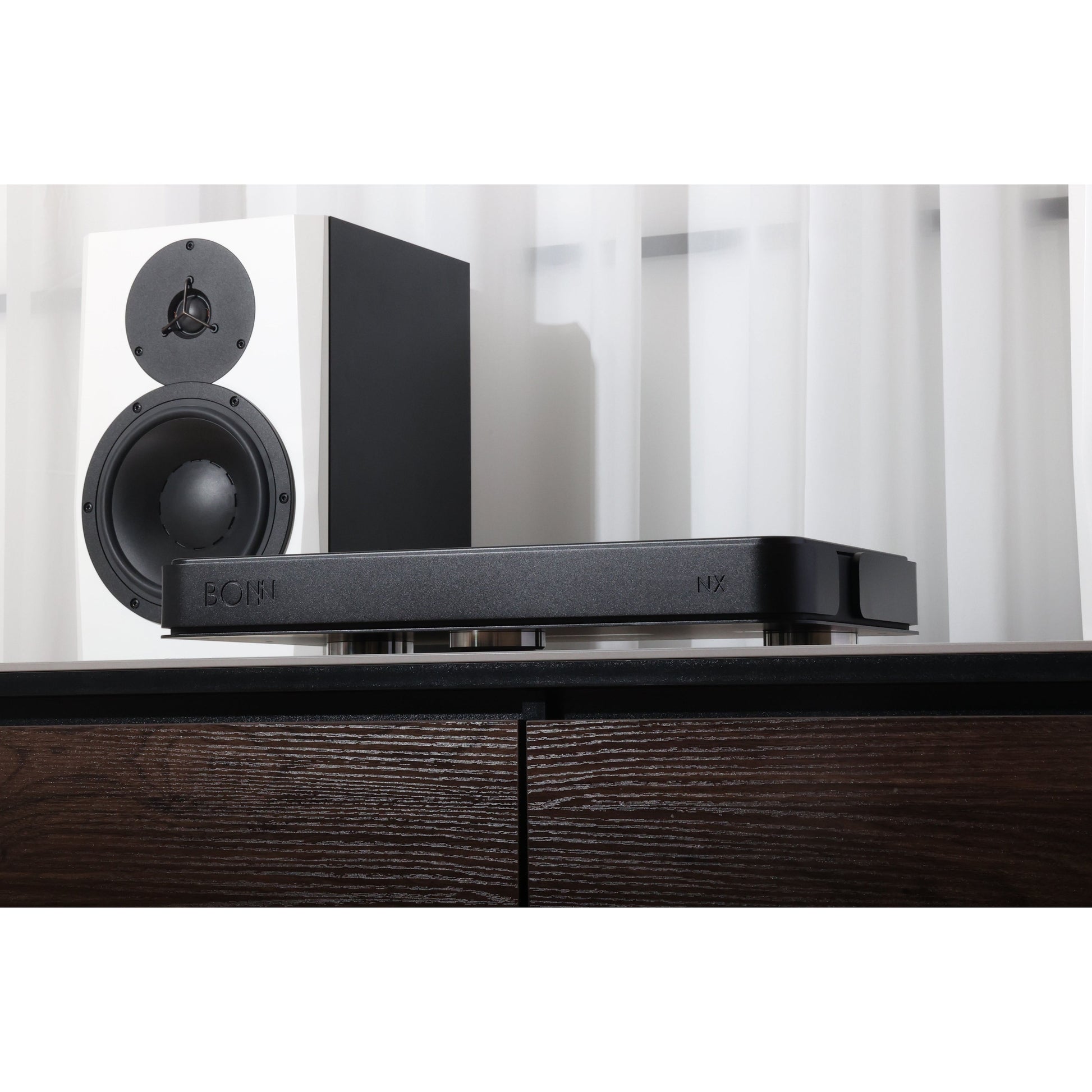

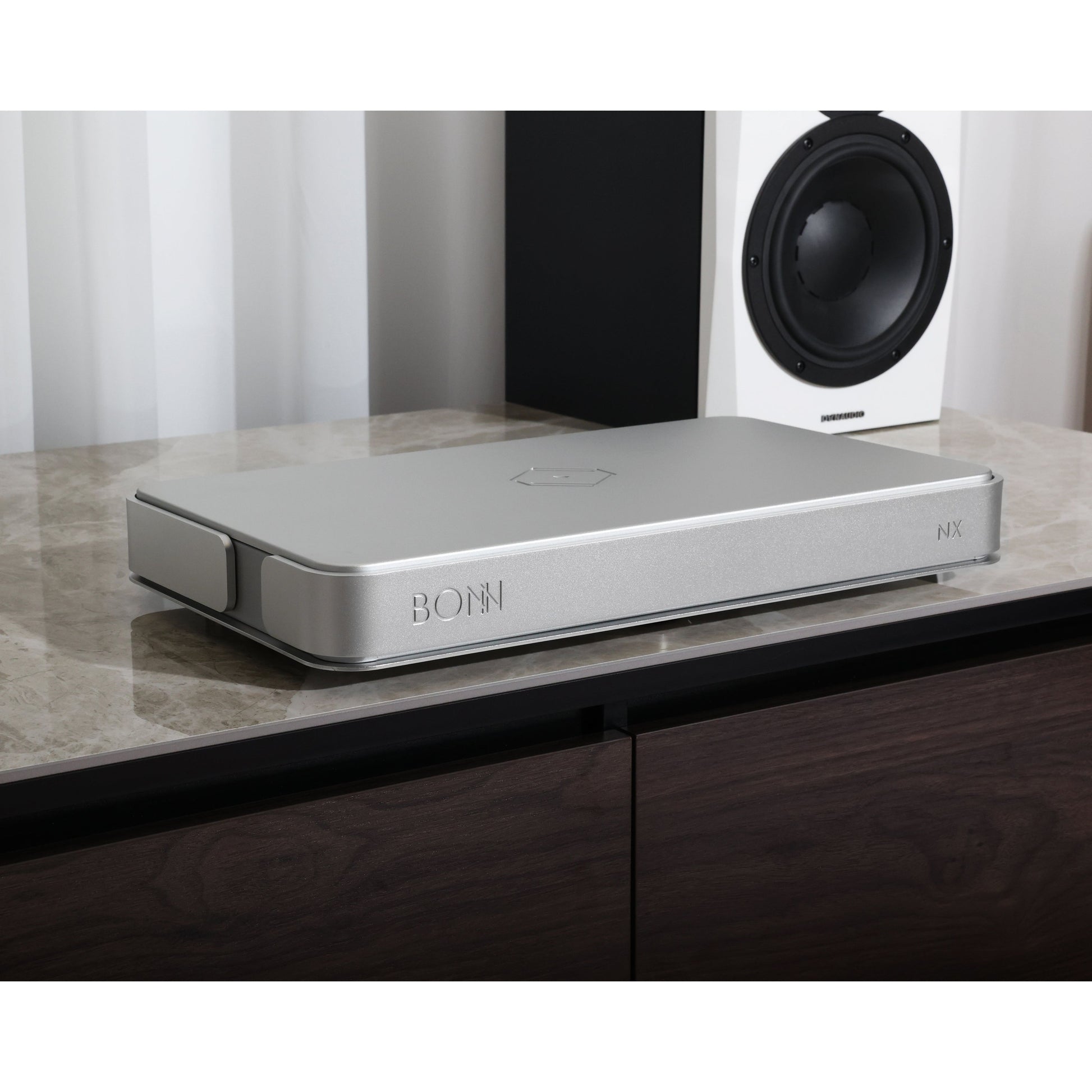

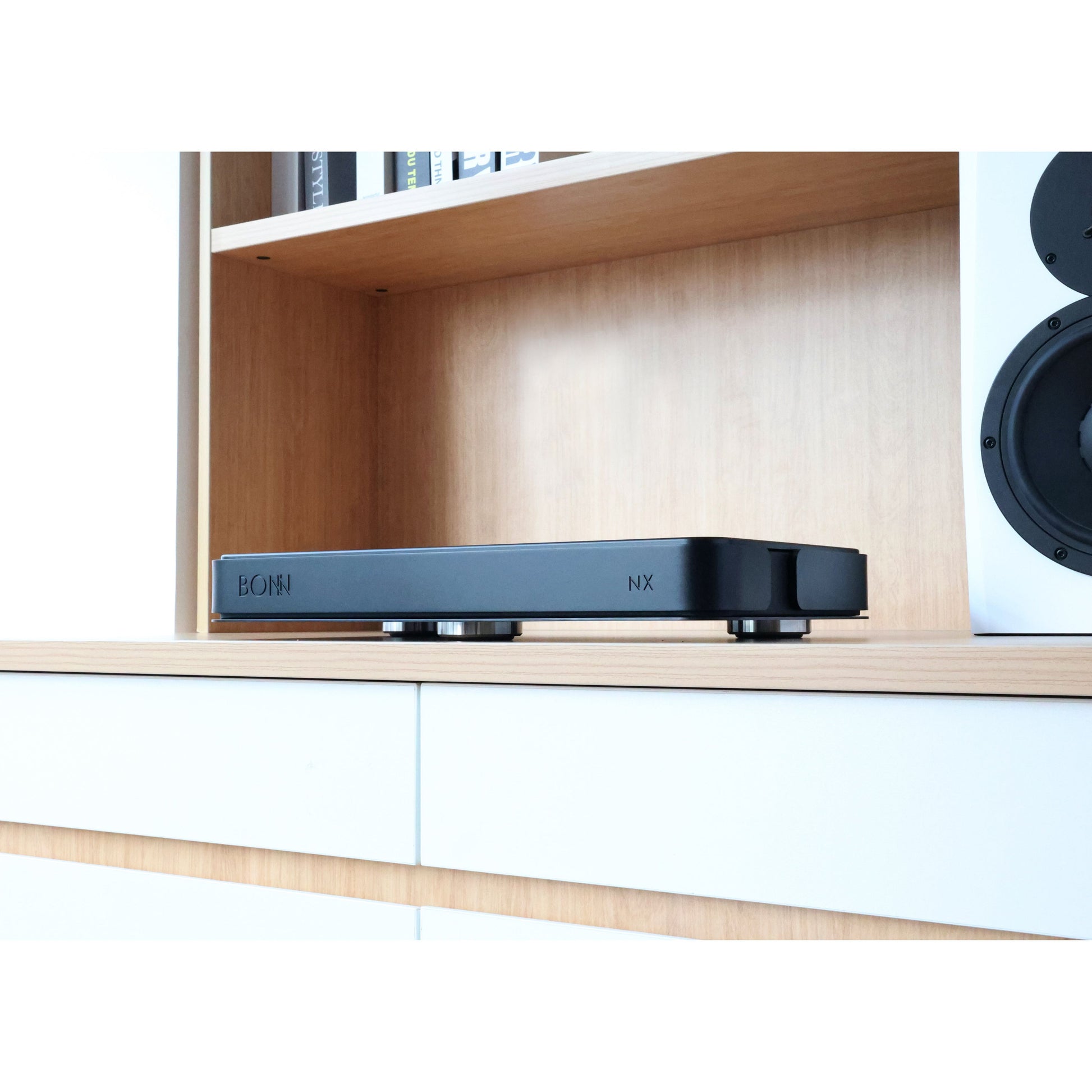

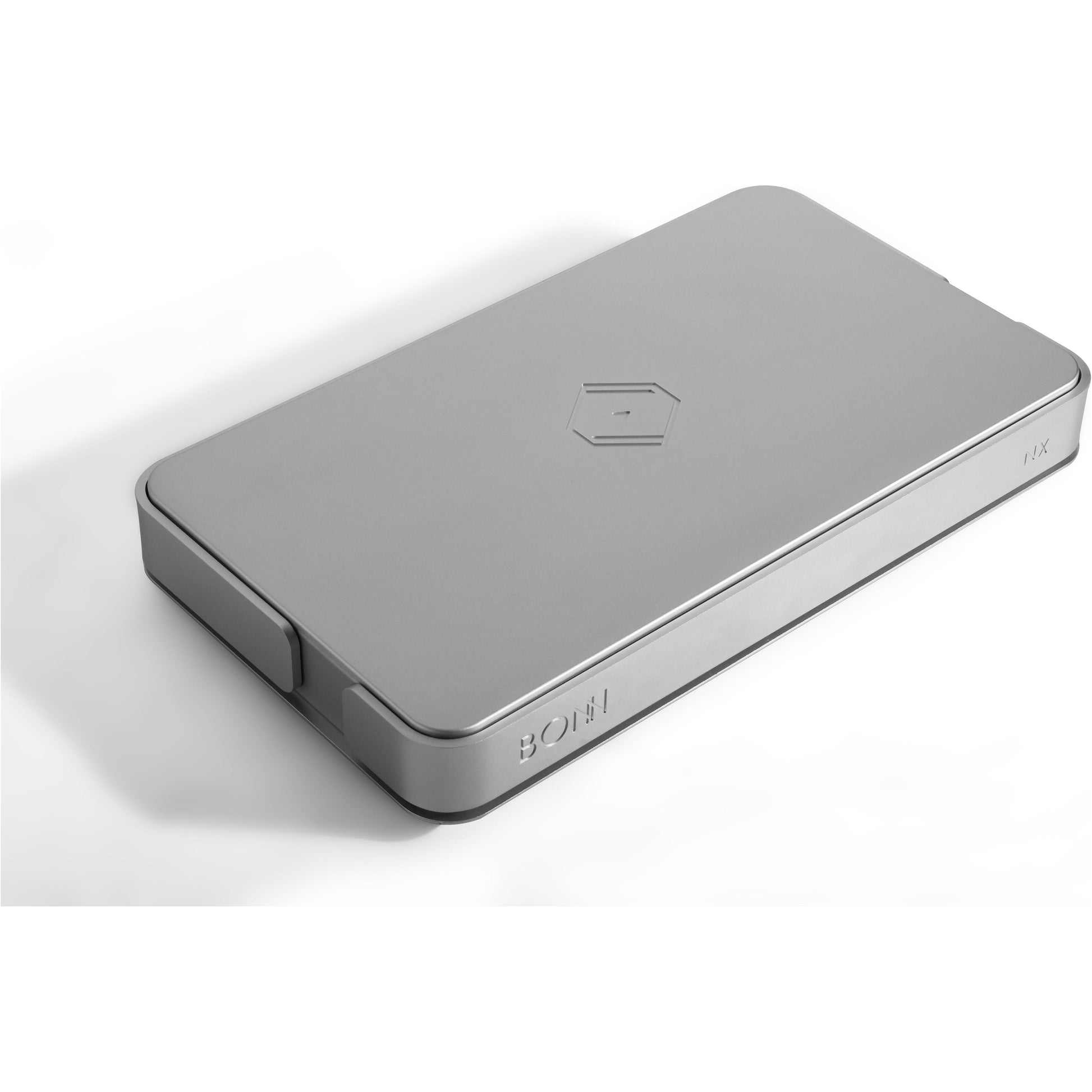

Silent Angel

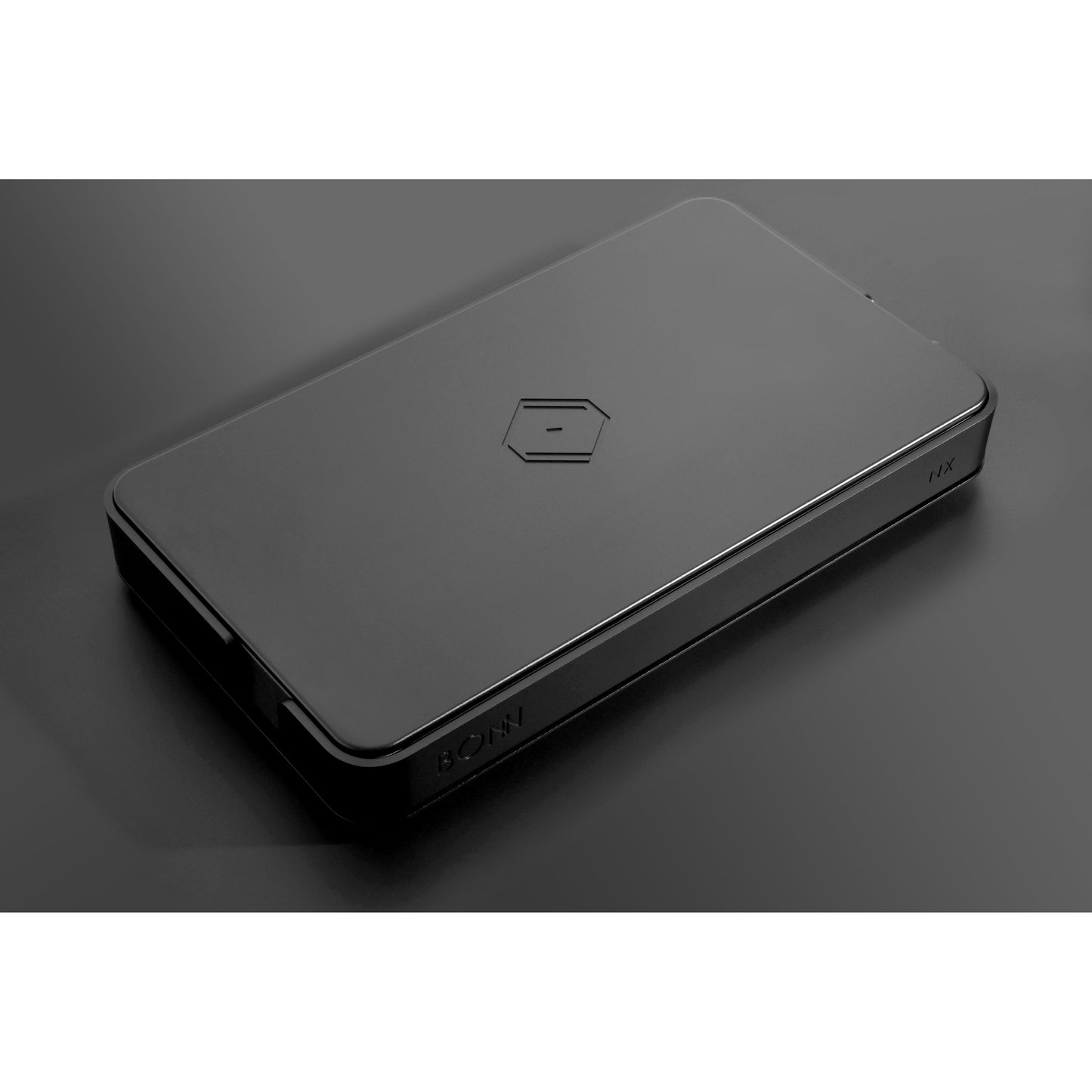

Bonn NX

Bonn NX

Regular price $3,999.00 USD
Regular price Sale price $3,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Stereophile: 'I immediately heard, or thought I heard, an intensification.'

Bonn NX

A Revolution in Audio Network Switching


  • Experience unparalleled reductions in jitter, electrical interference, and network delay.
  • Elevate your auditory senses waith impeccable sound clarity.
  • Delve into the purest signals by minimizing disruptions and ensuring system stability.
  • Unlock the true potential of High-Res Streaming with Bonn NX, our audio network masterpiece.

Design Mastery

Boasting eight gold-infused Gigabit Ethernet Ports designed to the pinnacle of precision. Coupled with our industry-leading internal switch power module, the Bonn NX is in a league of its own. Its dual-layer chassis of galvanized steel and aluminum ensures maximum protection and vibration resistance.

Audiophile's Delight

Further refine your setup with the option of an external linear power supply. Ground your system for enhanced noise reduction and enjoy the flexibility of the LED light switch and external clock input.


  • Available Colors: Black and Silver
  • Ports: Gold-plated 1GbE RJ45 x 8
  • Dimensions: 17.28" (W) x 2.48 (H) x 9.84 (D) mm
  • Weight: 14.11 lbs


Available Color Black, Silver
Power Input IEC (AC) 100-240V, 50/60Hz
(DC) 12V/1A (5.5mm x 2.5mm connector)

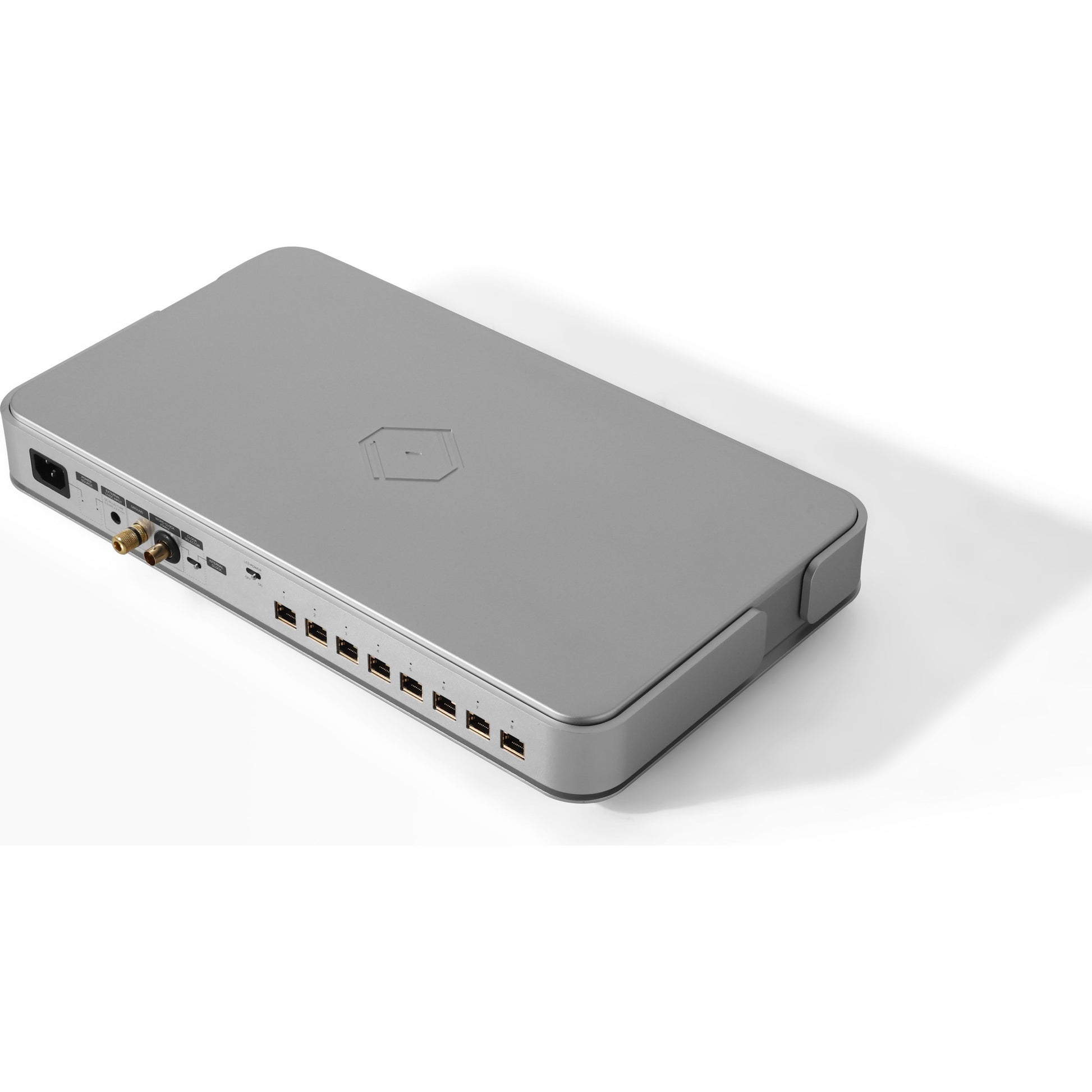

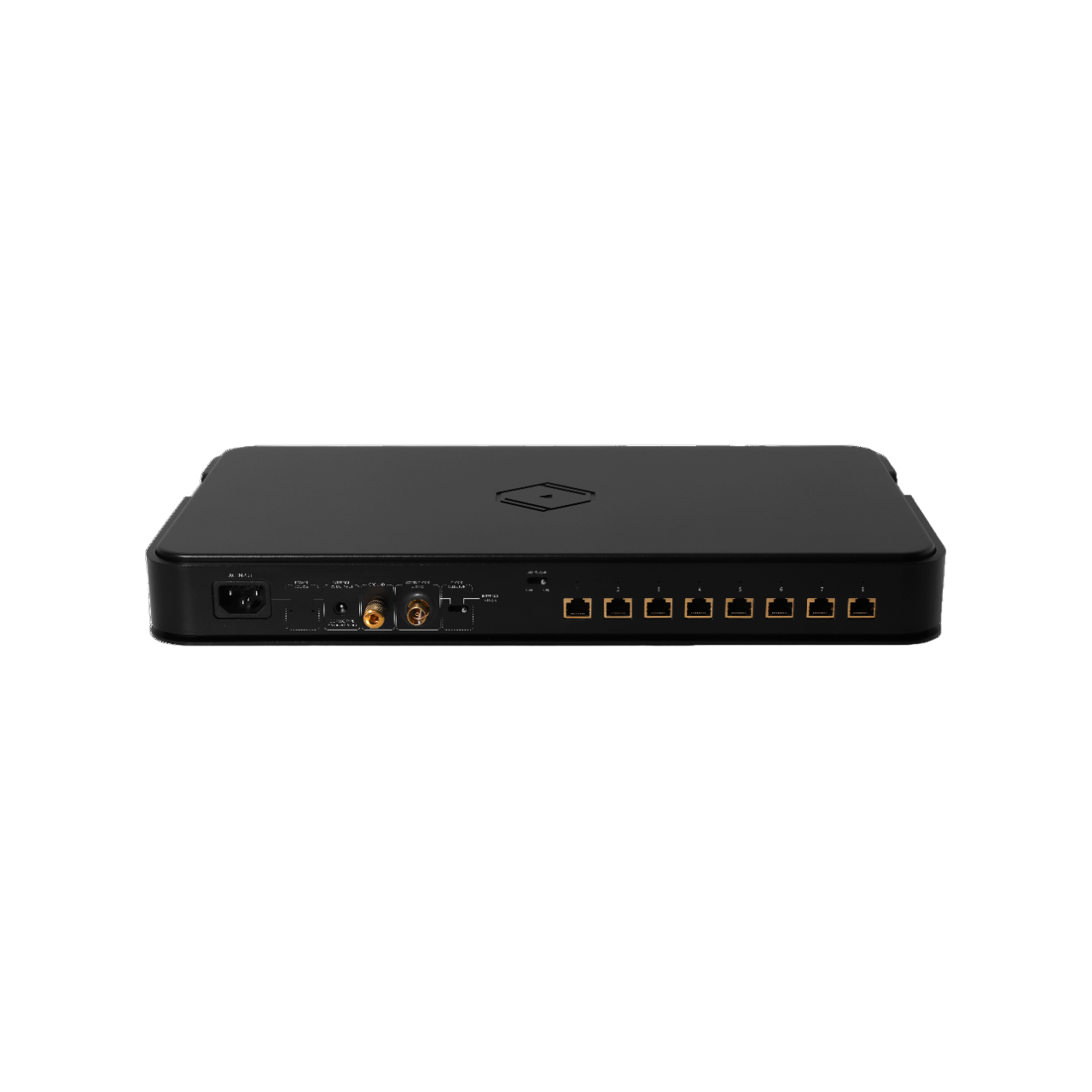

Ethernet Port Gold-plated 1GbE RJ45 port x 8
Interface Clock input switch x 1 (external/internal)
- BNC interface 25MHz external Word Clock
- Silent Angle specialized TCXO clock module
LAN port LED indicator switch x 1
- Control the on/off status of LAN port LED
Grounding Port x 1
- Connect to a ground box to make the signal quality more purer and precise without interference
LED Indicator AC Power LED (green) x 1
DC Power LED (green) x 1
LAN Port Status LED x 8
- Light on when linked; Flash when it's active
- Green: 1000Mbps; Amber: 100Mbps
Temperature Operating: 32 ~ 86 °F (0 ~ 30 °C)
Storage: -4 ~ 158 °F (-20 ~ 70 °C)
Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions 17.29 (W) x 2.49 (H) x 9.95 (D) inch
439 (W) x 63 (H) x 250 (D) mm
Weight 14.34 lbs / 6.4 kg
