M1TV2-4GB-US

Munich M1T - HiFi-Grade Music Transporter

(Request a Demo)

Experience the Ultimate Sound Quality

Product Overview The Munich M1T is a compact and feature-rich network music transporter designed for audiophiles who seek diverse audio sources and pristine sound quality. With meticulously optimized hardware and software, the M1T enhances every detail to deliver unparalleled audio performance. It's the perfect addition to any existing DAC and HiFi system, unlocking the full potential of digital music and high-resolution streaming services.

Effortless Setup and User-Friendly Experience

• Seamlessly connect to an external DAC or speakers via digital audio outputs.
• Stay connected to digital music and enjoy playback anytime without a PC.
• Control your music effortlessly with the VitOS Orbiter mobile app.
• Now MQA-supported and certified for superior audio quality.

VitOS Orbiter Mobile App With the VitOS Orbiter app, you can easily set up new devices, browse and stream music, and enjoy your favorite tracks with detailed information such as bitrate, sample rate, bit depth, and format (e.g., DSD, WAV, FLAC).

Advanced Hardware Design

• Sleek metal enclosure with a robust aluminum alloy front panel.
• Powerful, energy-efficient 4-core 1.5GHz ARM Cortex-A72 CPU.
• Ample system memory for large streaming buffers and multitasking.
• Digital outputs: AES/EBU, I2S, Coaxial, supporting up to PCM 384KHz & DSD 5.6MHz (DSD128).
• USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256).
• High-quality components and advanced circuitry.
• Fan-less design with efficient heat dissipation.
• EMI absorber to minimize electrical interference.
• Gold-plated ports for optimal connectivity.

Expand Your Audio Sources

• Access high-resolution streaming services and Internet radios.
• Play various music file formats and SACD files (Native DSD up to DSD256, DoP up to DSD128).

Network Streaming and Playback

• Stream high-resolution services and Internet radio.
• Roon Ready player compatibility.
• Access music from network shared storage (over SMB/CIFS).
• DLNA renderer functionality.

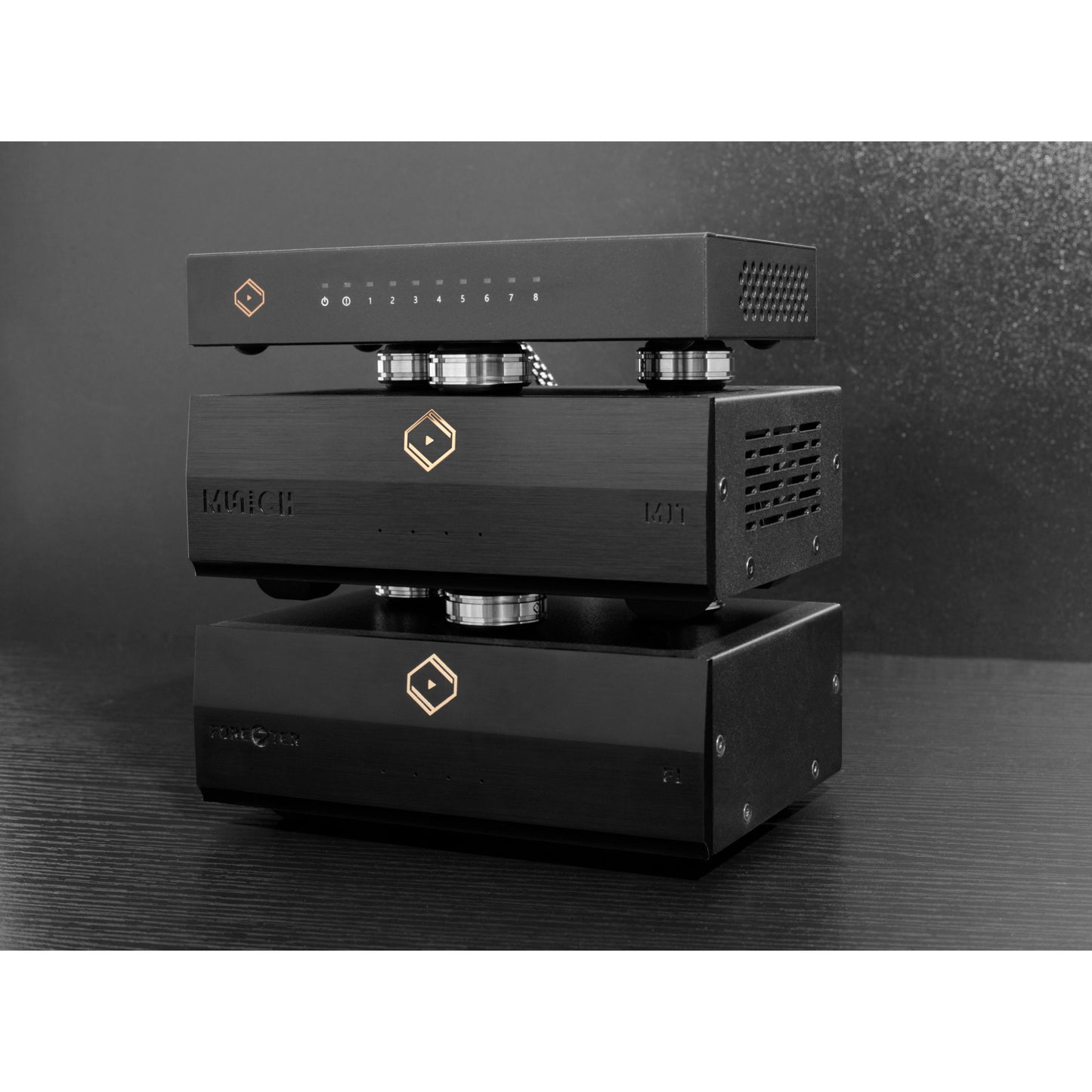

Enhance with Combo Setup

Power Source Purifier Connect to the Forester F1 linear power supply (5V 2A DC) for improved power quality and reduced noise.

Network Purifier Use the Bonn N8 switch to connect audio devices and create an isolated audio network. (*Compatible models: N8, N8 Pro, N16-LPS)

Specifications

• Color: Black
• Power Consumption: 10W max

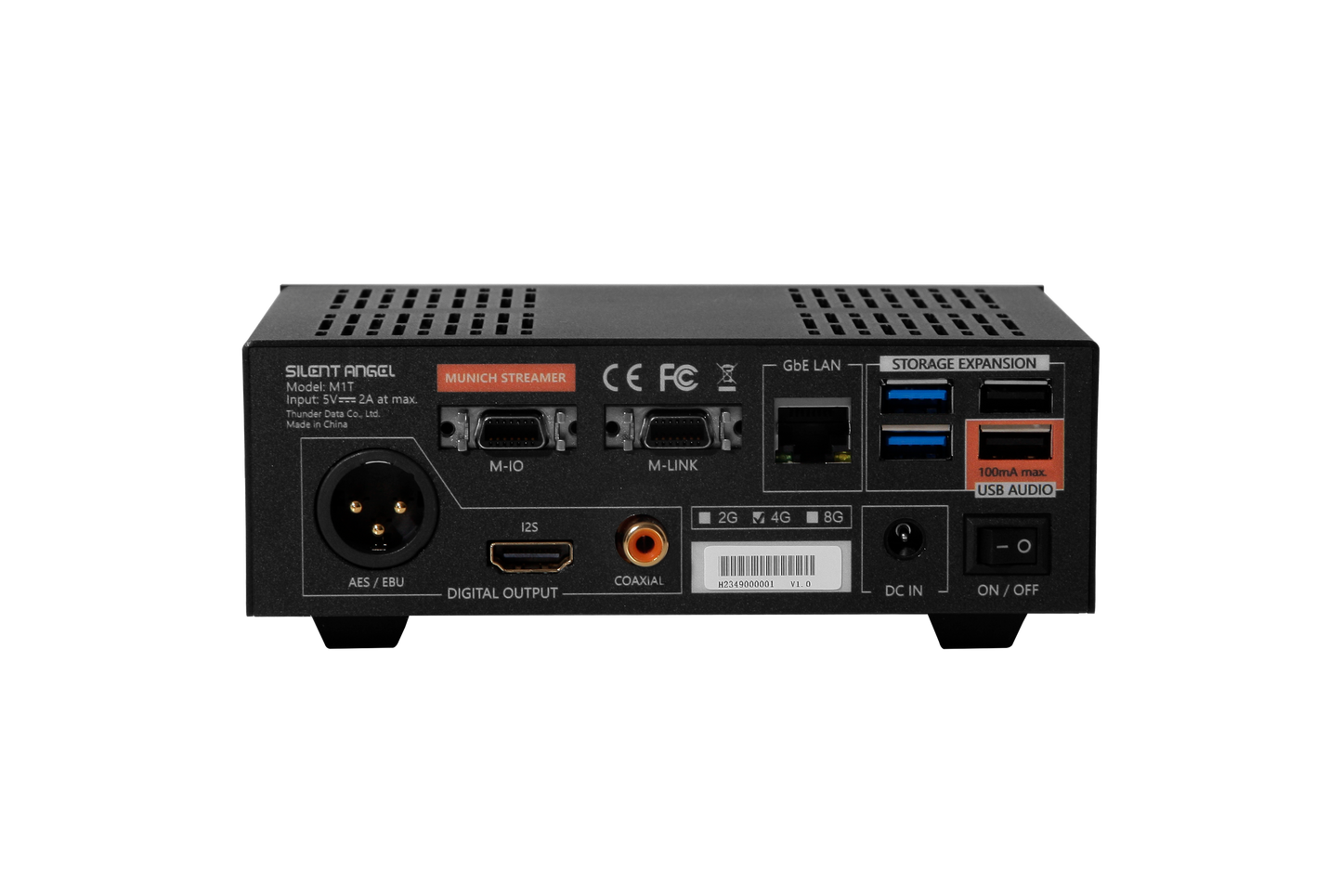

• Digital Outputs:
  • AES/EBU port x 1
  • I2S port x 1*
  • Coaxial port x 1
  • Supports up to PCM 384KHz and DSD 5.6M (DSD128)
  • *I2S output signal not compatible with Holo Audio's DAC
• USB Audio: USB Audio port x 1, Supports up to PCM 768KHz and DSD 11.2M (DSD256)
• USB Ports:
  • USB 3.0 x 2
  • USB 2.0 x 1
  • *For external storage
• M-IO: M-IO x 1* (*Reserved for future firmware upgrade)
• M-LINK: M-LINK x 1* (*Reserved for future firmware upgrade)
• Ethernet: 1 GbE RJ45 x 1
• Supported Formats: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE files, WMA, APE
• Gapless Playback: Supported
• MQA Handling: Transmits MQA signal to compatible DAC via USB audio port
• LED Indicators:
  • Mute LED x 1
  • Power LED x 1
  • Digital Output LED x 2* (*Yellow for DSD, Green for PCM)
• Operating Temperature: 32 ~ 86 °F
• Storage Temperature: -4 ~ 158 °F
• Operating Humidity: 10% ~ 90% RH (non-condensing)
• Storage Humidity: 5% ~ 95% RH (non-condensing)
• Dimensions: 6.11(W) inch x 1.99(H) inch x 4.34(D) inch
• Weight: 2.21 lbs
